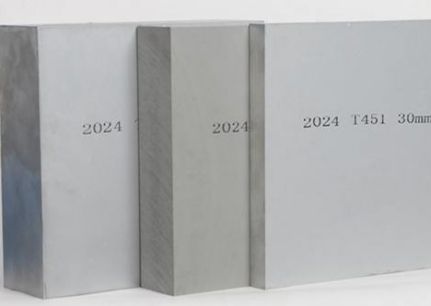

2024 aluminum plate is a typical hard aluminum alloy in the aluminum-copper-magnesium system. It is characterized by high strength and certain heat resistance. It can be used as working parts below 150°C, so it is extremely suitable for use as aircraft parts.
Item No :
2024 aviation aluminum plateProduct Origin :
ChinaTemper :
T3/T351/T4/T451Standard :
ASTM ，AMS, GB/T ，EN 485Order(MOQ) :
1 pcsThickness :
0.8-200 MM / CustomizedWidth :
1500 / Customized sizeLength :
3000 / Customized sizeMill certificate :
Each batch of materials can be providedPayment :
T/T, L/CDelivery Time :
1-2 days (stock) / 15-25 days (no stock)
2024 aluminum alloy is lightweight and has high hardness. Now as a lightweight material for aviation and automobiles, aluminum is the most cost-effective metal for machining or 3D printing.
Please refer to the following Chemical Composition(%):
| Chemical Composition | Element | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | — | Zr+Ti | Al | |
| Standard value(%) | ≤0.5 | ≤0.5 | 3.8-4.9 | 0.3-0.9 | 1.2-1.8 | ≤0.1 | ≤0.25 | ≤0.15 | — | 0.05-0.15 | Rest | ||
Please refer to the following Mechanical Property:
| Mechanical Property | Parameter | Tensile strength resistance(MPa) | Yield strength(MPa) | Elongation(%) | Hardness(HBW) | ||||||||
| Standard value | ≥430 | ≥290 | ≥11 | ≥122 | |||||||||
For more product information, please refer to the following list：
| Service | Cutting, Leveling, machining, finish process, grinding, custom |
| Packing details | Wooden pallet & box |
| Supply ability | 500MT/month |
| Incoterm | EXW, FOB, CIF, DDP... |
| Shipping methond | By sea/air/truck/DHL... |
