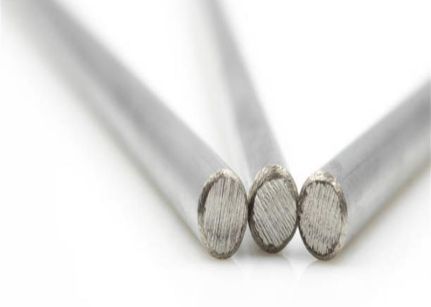

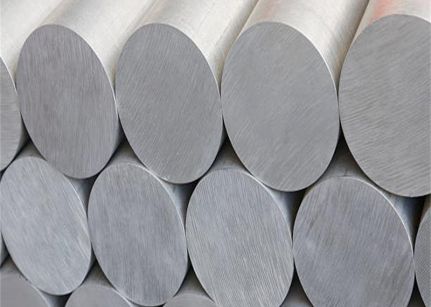

The main characteristics of 2024 aluminum bars are high strength, good fatigue resistance, and good mechanical processing performance. Commonly used in fields such as aerospace, military industry, automotive industry, and machinery manufacturing.
Item No :
2024 aluminum barProduct Origin :
ChinaTemper :
H112,T4,T351,T6Standard :
ASTM ,AMS, GB/T ,EN 485Order(MOQ) :
1 pcsThickness :
3-200 MM / CustomizedLength :
2500mm/ 3000mm / Customized sizeMill certificate :
Each batch of materials can be providedPayment :
T/T, L/CDelivery Time :
1-2 days (stock) / 15-25 days (no stock)

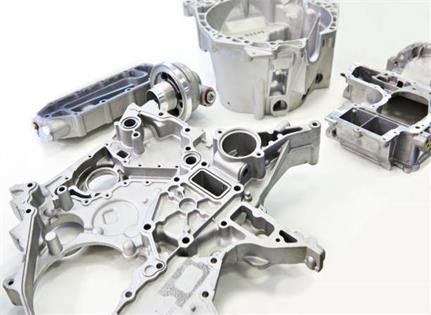

2024 aluminum bars are widely used in the production of high load parts and structures, such as skeleton parts, skins, wings, other parts of racing cars and trucks that require high strength and lightweight.
Please refer to the following Chemical Composition(%):
Chemical Composition |
Element | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other each | Total each | Al |
Standard value(%) | ≤0.5 | ≤0.5 | 3.8-4.9 | 0.3-0.9 |
1.2-1.8
|
≤0.1
|
≤0.25 | ≤0.15 | ≤0.05 | ≤0.15 | Rest |
Please refer to the following Mechanical Property:
Mechanical Property |
Parameter | Tensile strength resistance(Mpa) | Yield strength(Mpa) | Elongation(%) | Hardness(HBW) | |||||||||
Standard value | ≥450 | ≥310 | ≥8 | ≥120 |
For more product information, please refer to the following list:
Service | Cutting, Leveling, machining, finish process, grinding, custom |
Packing details | Wooden pallet & box |
Supply ability | 100MT/month |
Incoterm | EXW, FOB, CIF, DDP... |
Shipping methond | By sea/air/truck/DHL... |
