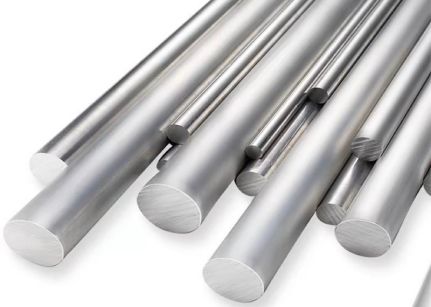

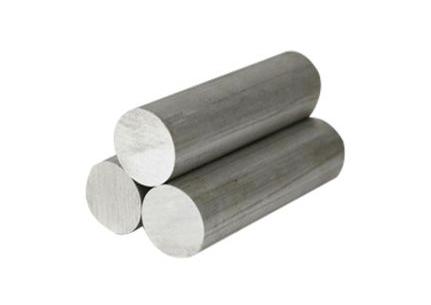

The 5052 aluminum rod has high strength, strong corrosion resistance and plasticity, and also has good weldability. Mainly used for low load parts that require high plasticity and good weldability, working in liquid or gas media, such as gasoline or lubricating oil conduits, small load parts, various liquid containers, and can also be used to manufacture sheet metal partsfor transportation vehicles, hardware products, electrical enclosures, etc.
Item No :
5052 aluminum barProduct Origin :
ChinaTemper :
H32,H112,H111,H24,OStandard :
ASTM ,AMS, GB/T ,EN 485Order(MOQ) :
1 pcsThickness :
3-200MM / CustomizedLength :
2500mm/ 3000mm / Customized sizeMill certificate :
Each batch of materials can be providedPayment :
T/T, L/CDelivery Time :
1-2 days (stock) / 15-25 days (no stock)
By utilizing the good plasticity and weldability of 5052 aluminum bar, low load parts that work in liquid or gas media can be manufactured, such as mailboxes, gasoline or lubricating oil pipes, various liquid containers, and other low load parts made by deep drawing: wire is used to make rivets. It is also commonly used as accessories for transportation vehicles, ships, instruments, hardware products, electrical enclosures, etc.
Please refer to the following Chemical Composition(%):
Chemical Composition |
Element | Si+Fe | Cu | Mn | Zn | Cr | Ni | Zn | Ti | Other each | Total each | Al |
Standard value(%) | ≤0.65 | ≤0.10 | ≤0.10 | ≤0.25 |
0,15-
0,35
|
—— | ≤0.1 | ≤0.15 | ≤0.05 | ≤0.15 | Rest |
Please refer to the following Mechanical Property:
Mechanical Property |
Parameter | Tensile strength resistance(Mpa) | Yield strength(Mpa) | Elongation(%) | Hardness(HBW) | |||||||||
Standard value | 170-230 | ≥70 | 15-17 | ≥45 |
For more product information, please refer to the following list:
Service | Cutting, Leveling, machining, finish process, grinding, custom |
Packing details | Wooden pallet & box |
Supply ability | 100MT/month |
Incoterm | EXW, FOB, CIF, DDP... |
Shipping methond | By sea/air/truck/DHL... |
