7050 alloy can significantly improve its mechanical properties through heat treatment, with high strength, good toughness, fatigue strength, and low quenching sensitivity. Commonly used in the aerospace field, such as key load-bearing structural components of aircraft, wing beams, ribs, fuselage frames, wall panels, etc.
Item No :

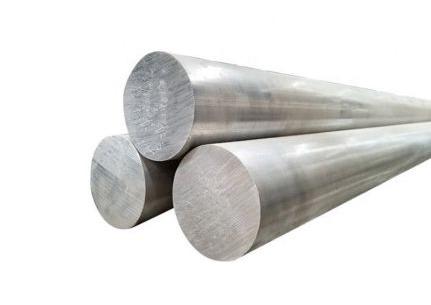

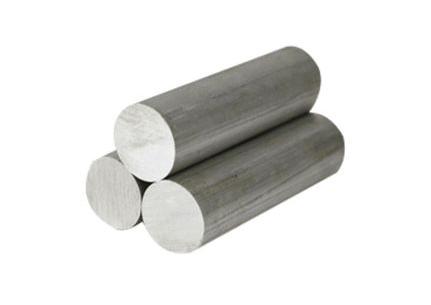

7050 aluminum barProduct Origin :
ChinaTemper :
T6,T651,T7451,H112Standard :
ASTM ,AMS, GB/T ,EN 485Order(MOQ) :
1 pcsThickness :
3-200 MM / CustomizedLength :
2500mm/ 3000mm / Customized sizeMill certificate :
Each batch of materials can be providedPayment :
T/T, L/CDelivery Time :
1-2 days (stock) / 15-25 days (no stock)
7050 aluminum alloy bars play an important role in aerospace and other industrial applications that require high strength and corrosion resistance due to their excellent performance. Such as making airplane frames, airplane wings, airplane structural components, etc
Please refer to the following Chemical Composition(%):
Chemical Composition |
Element | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other each | Total each | Al |
Standard value(%) | 0.12 | ≤0.15 | 2.0-2.6 | ≤0.1 |
1.9-2.6
|
0,04
|
5.7-6.7 | ≤0.06 | ≤0.05 | ≤0.15 | Rest |
Please refer to the following Mechanical Property:
Mechanical Property |
Parameter | Tensile strength resistance(Mpa) | Yield strength(Mpa) | Elongation(%) | Hardness(HBW) | |||||||||
Standard value | ≥524 | ≥455 | ≥9 | - |
For more product information, please refer to the following list:
Service | Cutting, Leveling, machining, finish process, grinding, custom |
Packing details | Wooden pallet & box |
Supply ability | 100MT/month |
Incoterm | EXW, FOB, CIF, DDP... |
Shipping methond | By sea/air/truck/DHL... |
