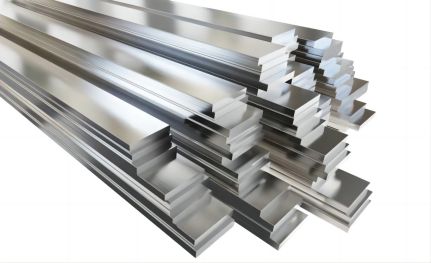

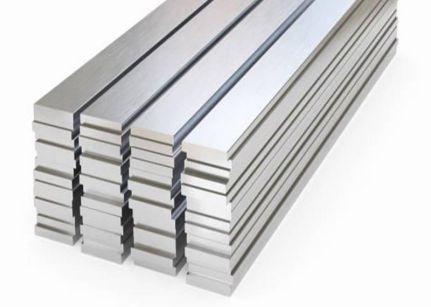

2024 aluminum flat bars are known for their high strength and excellent fatigue resistance, especially in the aerospace industry where they are commonly used to manufacture structural components that require high strength and lightweight.
Item No :
6063 aluminum flat barProduct Origin :
ChinaTemper :
H112,T4,T351,T6Standard :
ASTM ,AMS, GB/T ,EN 485Order(MOQ) :
1 pcsThickness :
1.5-90MM / CustomizedLength :
100mm/ 200mm / Customized sizeMill certificate :
Each batch of materials can be providedPayment :
T/T, L/CDelivery Time :
1-2 days (stock) / 15-25 days (no stock)
2024 aluminum flat bar is a high-strength aluminum alloy that is easy to perform various mechanical processing operations and is suitable for structural components that need to withstand repeated loads. Can be used to make aircraft structural components, fuselage, wings, military aircraft parts, racing car parts, ship structural components, etc.
Please refer to the following Chemical Composition(%):
Chemical Composition |
Element | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other each | Total each | Al |
Standard value(%) | 0.5 | ≤0,5 | 3.8-4.9 | 0.3-0.9 |
1.2-1.8
|
≤0,1
|
≤0.25 | ≤0.15 | ≤0.05 | ≤0.15 | Rest |
Please refer to the following Mechanical Property:
Mechanical Property |
Parameter | Tensile strength resistance(Mpa) | Yield strength(Mpa) | Elongation(%) | Hardness(HBW) | |||||||||
Standard value | ≥450 | ≥310 | ≥8 | ≥120 |
For more product information, please refer to the following list:
Service | Cutting, Leveling, machining, finish process, grinding, custom |
Packing details | Wooden pallet & box |
Supply ability | 100MT/month |
Incoterm | EXW, FOB, CIF, DDP... |
Shipping methond | By sea/air/truck/DHL... |
